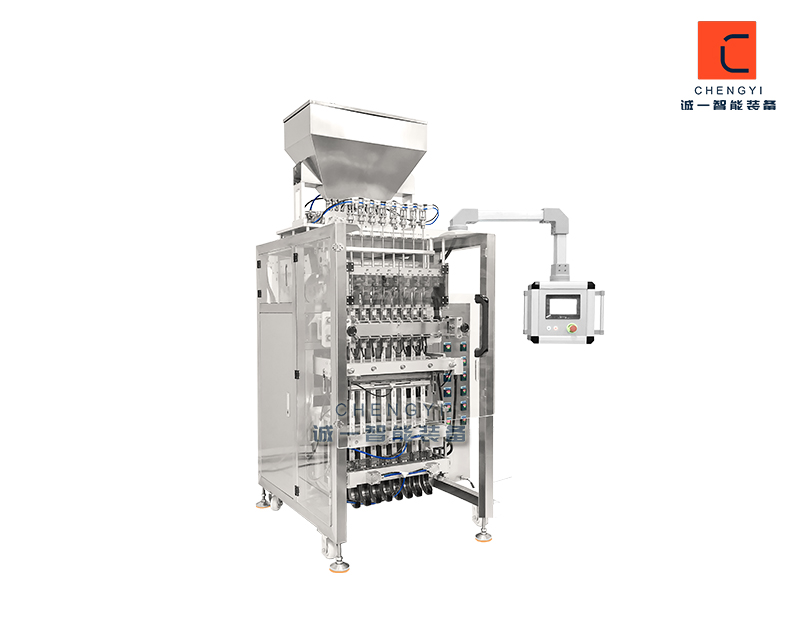

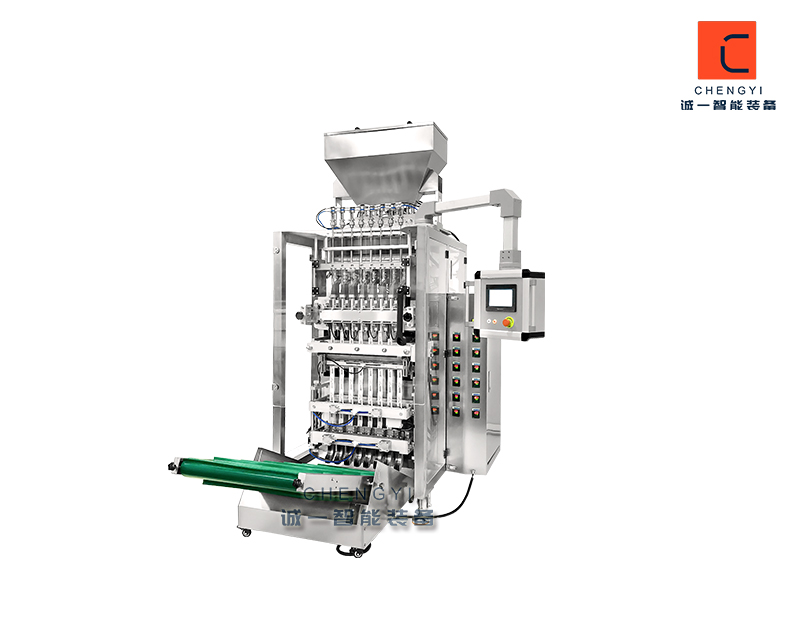

Product model：CY300Y/CY600Y/CY900Y
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc
We can help you find the goods you want by phone
Machine parameters
| Model | CY300Y | CY600Y | CY900Y | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lanes | |
| Capacity | 25--40 / Max.25-40cycle/min/lane | |||
| Bag size | L 50-180mm W:17-75mm | L::50-180mm W:17-100mm | L::50-180mm W:17-110mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1.Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump | |||
| Sealing type | 3 side sealing | 3 side sealing | 3 side sealing | |
| Cutting type | 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details
Electric box
Slitting system
Horizontal and vertical sealing system (1)
Horizontal and vertical sealing system (2)
Bucket
Bucket 1
Barrel and piston pump metering system
Machine video introduction

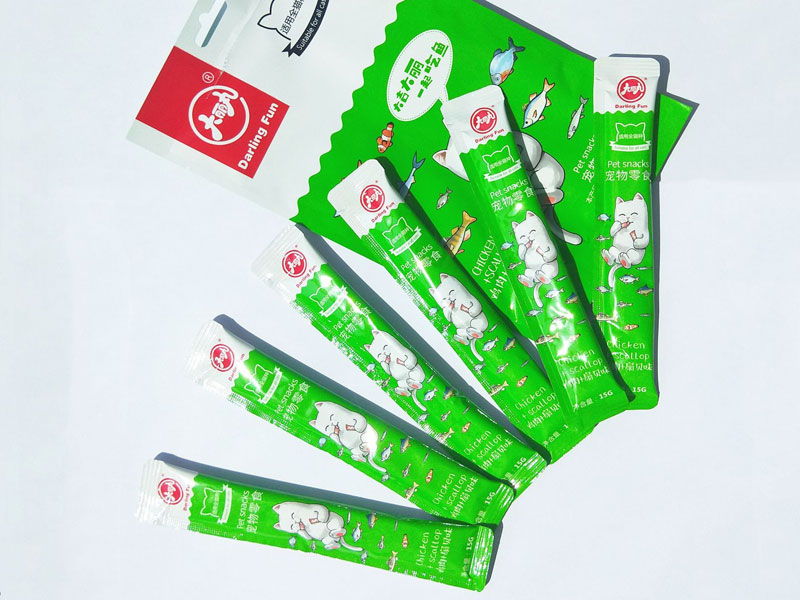

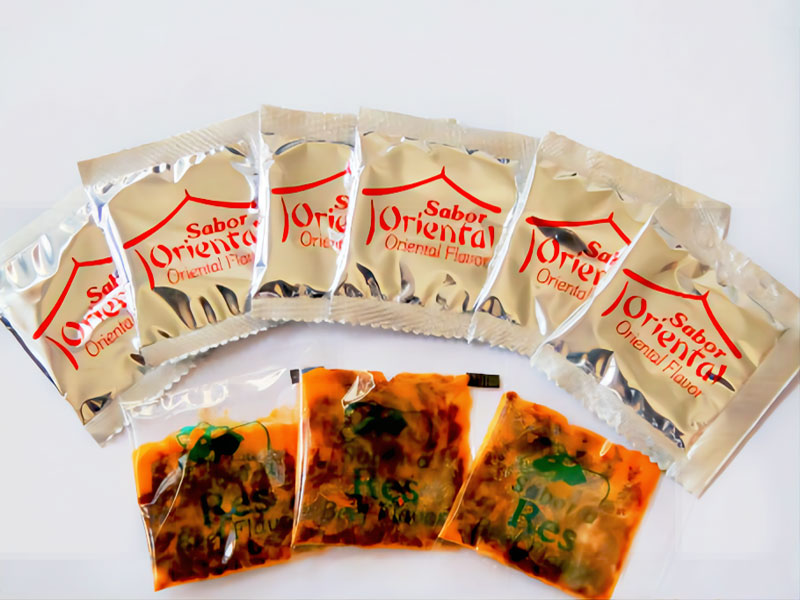

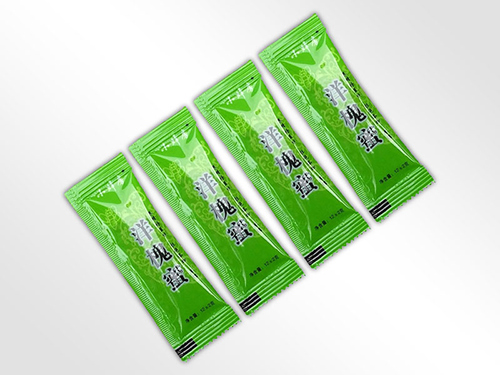

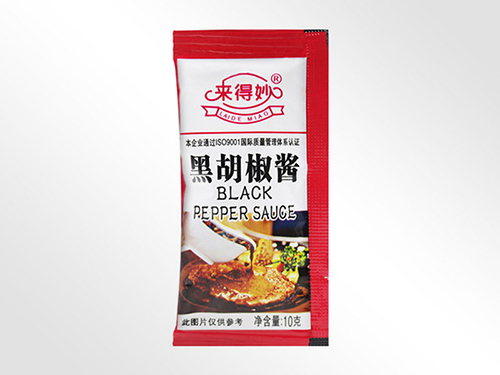

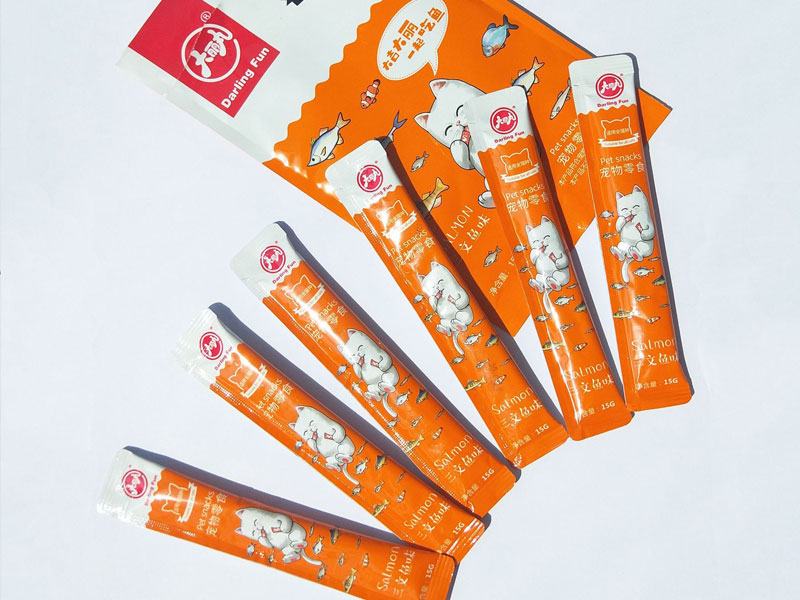

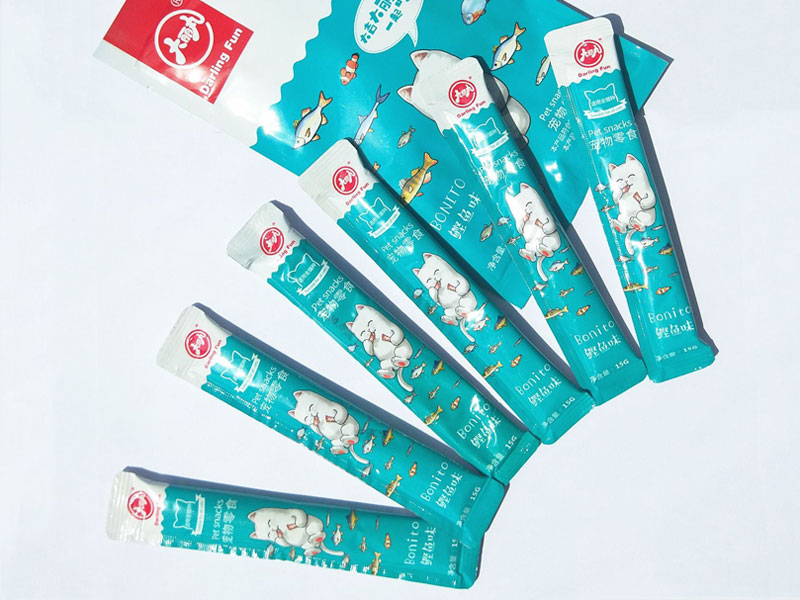

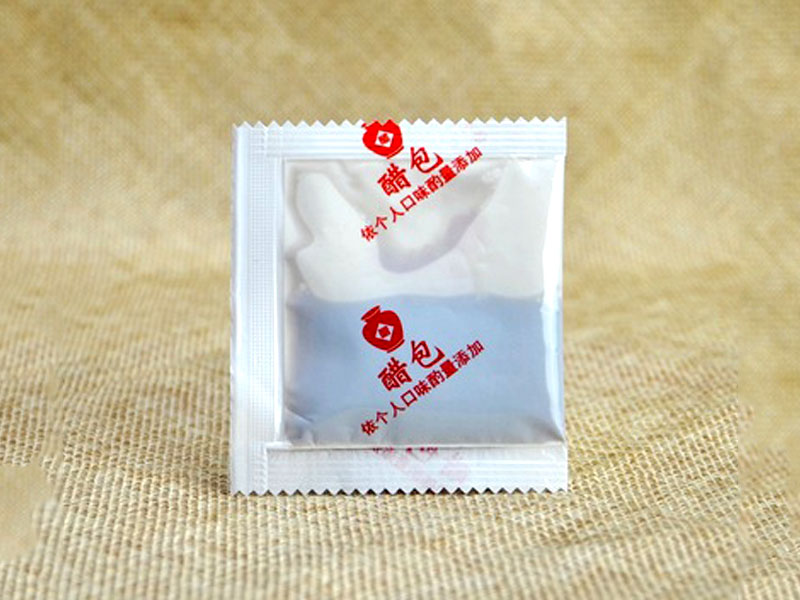

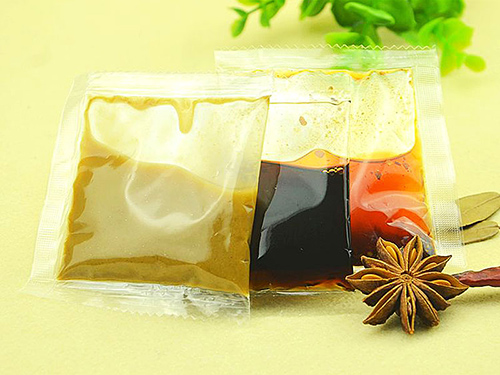

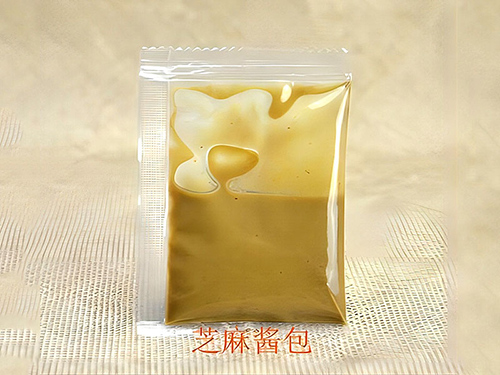

Effect of packaging sample bag
